Advantages of having a solar battery
Less Dependence On The Grid
First, solar batteries allow you to be less dependent on the grid. Having great energy independence also means that you have the ability to power your home entirely with clean solar energy.
Producing Clean Energy
Utilities derive the majority of their electricity from dirty fossil fuels. Installing a solar battery ensures that you will power your home entirely with renewable energy produced right on your roof!
Access To Backup Power
The utility grid can be unreliable. Solar batteries can be used as a backup power source when the grid goes down. It is especially useful to have a backup battery bank in places like California, where grid outages are common during wildfire season.
Big Savings On Your Electric Bill
Solar batteries also have the potential to save you money on your electric bill. This is especially true if your utility uses a time-of-use rate structure. This means that your utility will charge different rates for electricity depending on the time of day. Moreover, solar batteries can also offer bill savings if your utility does not offer full retail net metering.
SPECIFICATIONS
ELECTRICAL SPECIFICATION:
Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah |
Capacity @20A | 5HR |
Energy | 5120Wh |
Resistance | ≤50mΩ |
Efficiency | 99% |
Self Discharge | ＜3% per month |
DISCHARGE SPECIFICATIONS:
Max. Cont. Discharge | 100A |
Peak Discharge Current | 200A |
Recommend Cut-off voltage | 42V |
CHARGE SPECIFICATION:
Recommended Charge Current | 20-40A |
Max. Charge Current | 100A |
Recommended Charge Voltage | 58.4V |
Charge Current (-20 to -10 ºC) | ≤0.05 C |
MECHANICAL SPECIFICATIONS:
Dimensions（L*W*H） | 550 * 350 * 248mm (Can also be customised) |
Weight | 49KG |
Terminal Type | M8 screw |
Case Material | Metal |
Enclosure Protection | IP42 |
TEMPERATURE SPECIFICATION:
Discharge Temperature | -20ºC to 60 ºC |
CHARGE SPECIFICATION:
Charge Temperature | 0 ºC to 55 ºC |
Storage Temperature | -20ºC to 40 ºC |
BMS High Temperature | 75 ºC |
Reconnect Temperature | 50 ºC |

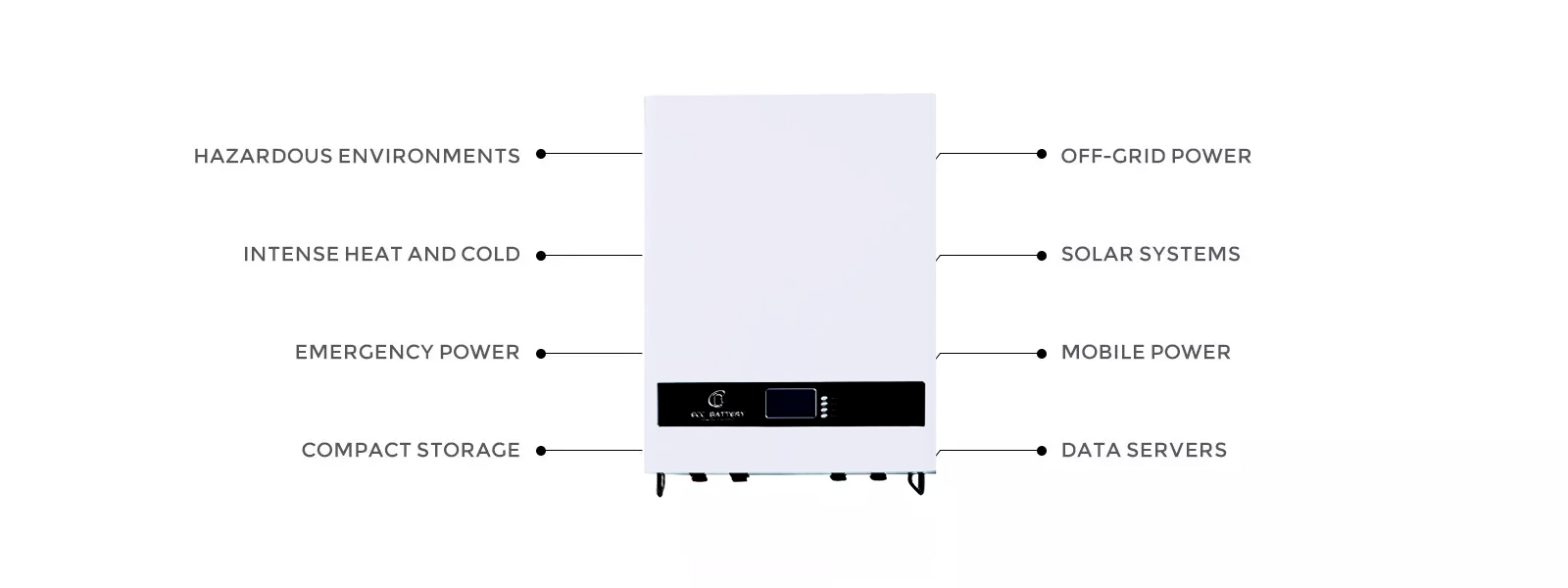

Main Application:
Solar Storage Battery, Off Grid System, Wind Storage System, Ess System
Remark:
1> These lifepo4 batteries current can be customized.
2> This lithium battery dimension can be customized.
3> LiFePO4 battery is widely used as replacement battery for lead acid battery, AGM battery.
Other Function Optional:
1> Bluetooth Function
2> Communication Function: RS485, RS232, Canbus
3> Self Heat Function
Certain applications benefit greatly from custom battery solutions. Watercraft, aircraft and other vehicles, for instance, have weight and balance specifications to meet, and customizing your battery helps meet those requirements. Our custom lithium battery packs offer turnkey solutions that combine lithium battery cells, a battery management system, mechanicals, communications and safety certifications.
Customized logo(Min. Order 100 Pieces)
Customized packaging(Min. Order 100 Pieces)

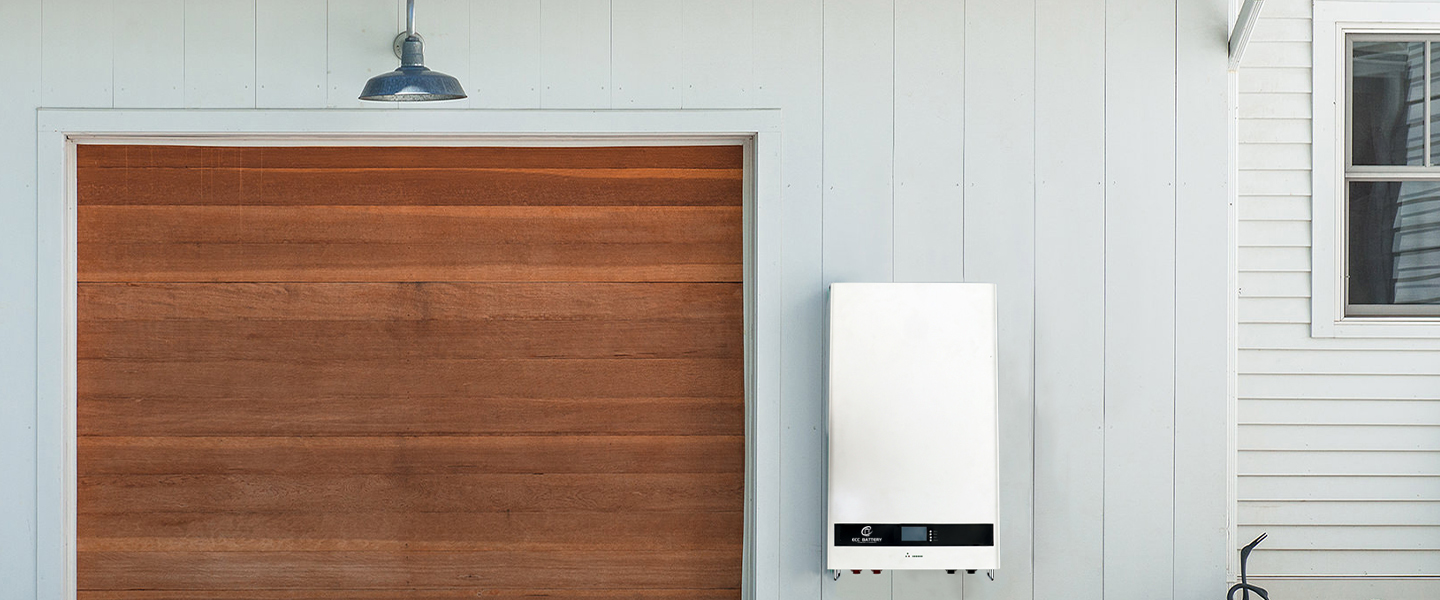

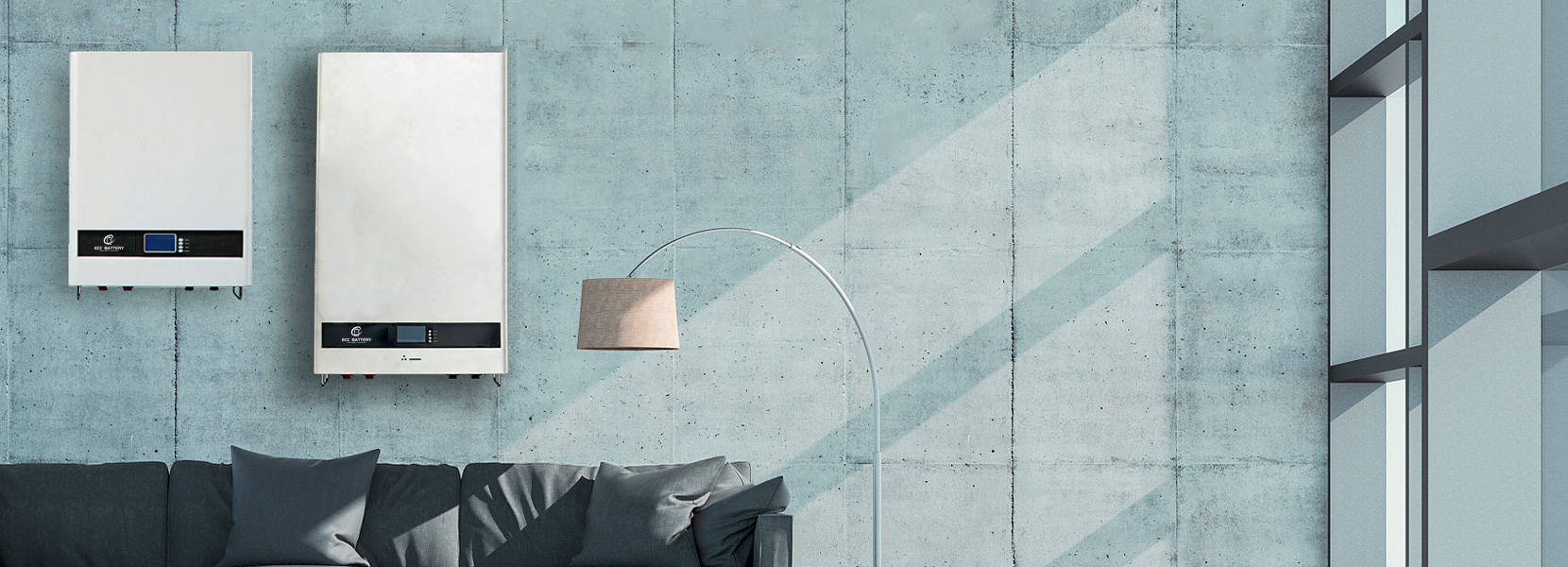

APPLICATION SCENARIOS
As local storage technologies for household use, they are smaller relatives of battery-based grid storage and support the concept of distributed generation. When combined with on-site generation, they can virtually eliminate power outages in off-grid lifestyles.
Lithium-ion batteries power a variety of devices—power tools, laptops, tablets, cell phones, and electric vehicles. They have some distinct advantages over wet cell lead-acid batteries, such as those you find in cars. Rapidly falling prices and developments in lithium-ion batteries and related technologies are changing all that. The new generation of solar storage is cheaper, more cost-effective, leaner and better looking.
