Advantages of home battery systems
Reduce emissions - Reduce pollution and demand from coal and gas dependent power grids
Be blackout safe - Provides backup power during a blackout or emergency
Reduce cost - Save money by using less energy from the grid
Become energy independent - Store your excess solar energy to reduce your grid usage
Reduce peak demand - Supporting the grid during peak times and provide grid stability services
SPECIFICATIONS
Inverter
Rated Power | 4000w |
Output Voltage | 120v / 220V |
Output Frequency | 50HZ / 60HZ |
Output Waveform | Pure Sine Wave |
Conversion Time AC/DC | <8ms |
Battery (Lithium Iron Phosphate Battery)
Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah * 2/3/4/5/6 |
Discharge Cut-Off | 42.4V |
Charge Cut-Off | 58.4V |
Charge Temperature | 0℃ – 45℃ |
Discharge Temperature | -20℃ – 60℃ |
Charge Method | CC/CV |
Life Cycle | 2000+ |
BMS Communication Baud Rate | 125kbps |
BMS Communication Protocol | RS485, RS232, CAN BUS |
Size (mm) | 530 * 420 * 1220 (20KWH) |
Certain applications benefit greatly from custom battery solutions. Watercraft, aircraft and other vehicles, for instance, have weight and balance specifications to meet, and customizing your battery helps meet those requirements. Our custom lithium battery packs offer turnkey solutions that combine lithium battery cells, a battery management system, mechanicals, communications and safety certifications.
Customized logo(Min. Order 100 Pieces)
Customized packaging(Min. Order 100 Pieces)

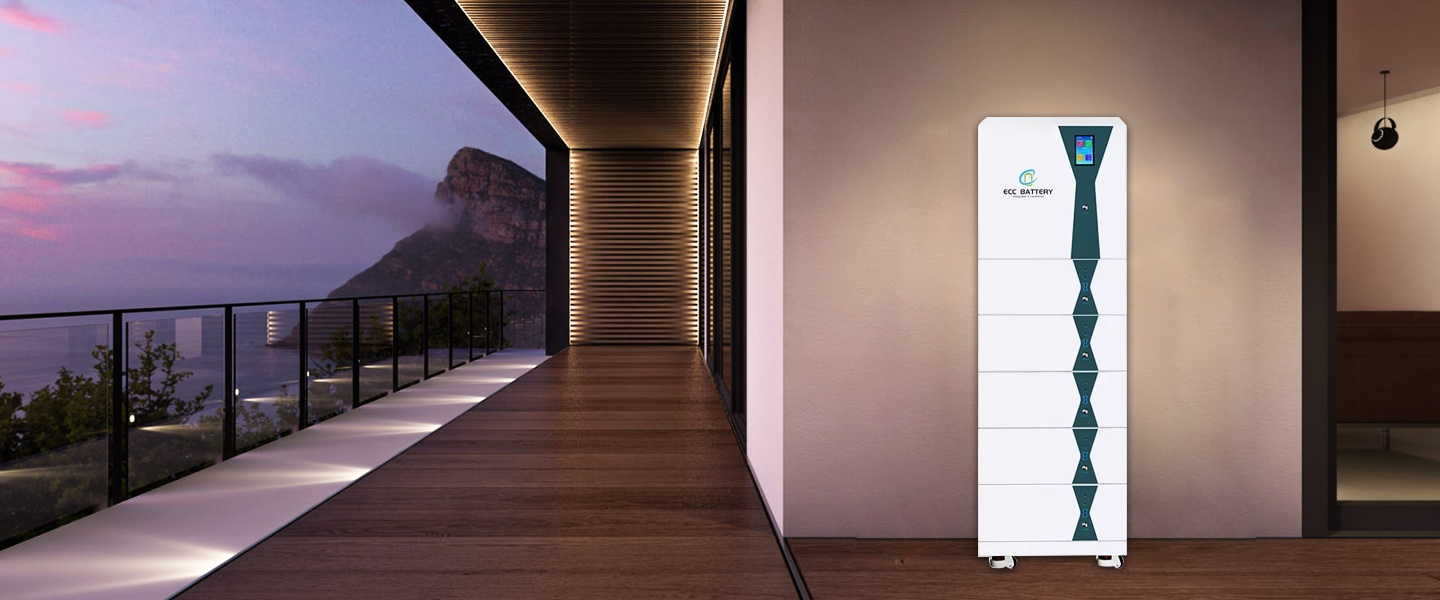

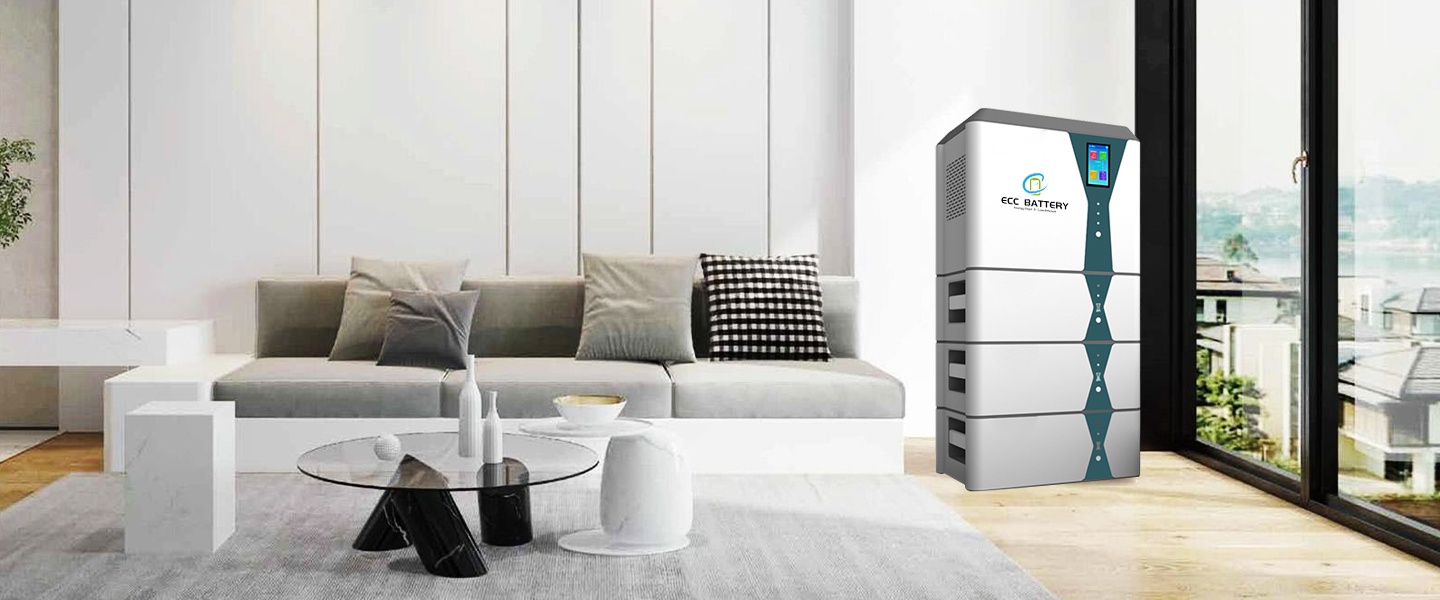

APPLICATION SCENARIOS
As local storage technologies for household use, they are smaller relatives of battery-based grid storage and support the concept of distributed generation. When combined with on-site generation, they can virtually eliminate power outages in off-grid lifestyles.
Lithium-ion batteries power a variety of devices—power tools, laptops, tablets, cell phones, and electric vehicles. They have some distinct advantages over wet cell lead-acid batteries, such as those you find in cars. Rapidly falling prices and developments in lithium-ion batteries and related technologies are changing all that. The new generation of solar storage is cheaper, more cost-effective, leaner and better looking.
